COUPLING

Couplings are a forged steel fitting used to connect two lengths of pipe, and Half-coupling is screwed onto the pipe, while the other end is made to be tightly inserted, or welded, onto the other end to pipe or vessel. A coupling is a mechanical device that connects similar or dissimilar shafts in machines to transmit power and movement. It is usually a temporary connection (but can be permanent in some cases) and capable of removal for service or replacement. Nascent Fittings is a globally recognized Manufacturer and Exporter of Forged Couplings. These couplings are manufactured under the close supervision of experienced professionals. Nascent employs ​sophisticated technology and cutting-edge tools to ensure the highest possible level of product quality. They also have a highly skilled and well-trained team of experts who use their experience to guide workers at all stages of the manufacturing process, ensuring that only the highest quality, most accurate products are developed in the industry.

Enquiry Now

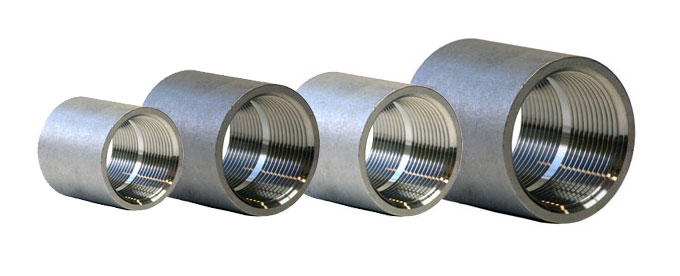

Nascent Fittings is well-known for providing Forged Coupling with exceptional characteristics such as flexible execution, superior surface finish, increased corrosion resistance, longer service life, and precise dimensioning. A coupling can perform multiple functions in a machine. The design may incorporate more than one of these coupling features into the product’s function in advanced applications. Couplings are available in three types i.e. Half Coupling, Full Coupling, Reducing Coupling.

CARBON STEEL SPECIFICATION:

  • Size : 1/2″ NB to 4″ NB, (Socket Weld & Threaded)
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11
  • Carbon Steel : ASTM A 105
  • Carbon Steel : DIN Standard – EN 10222-2/ EN 10222-4 – P235GH / P245GH / P265GH / P280GH / P295GH / P355N / P355NH / P285NH / P285QT
  • Other Services: Hot Dip Galvanizing, Sand Blasting, Special Threading.

ALLOY STEEL & LTCS FORGED FITTINGS:

  • Size : 1/2″ NB to 4″ NB, (Socket Weld & Threaded)
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11

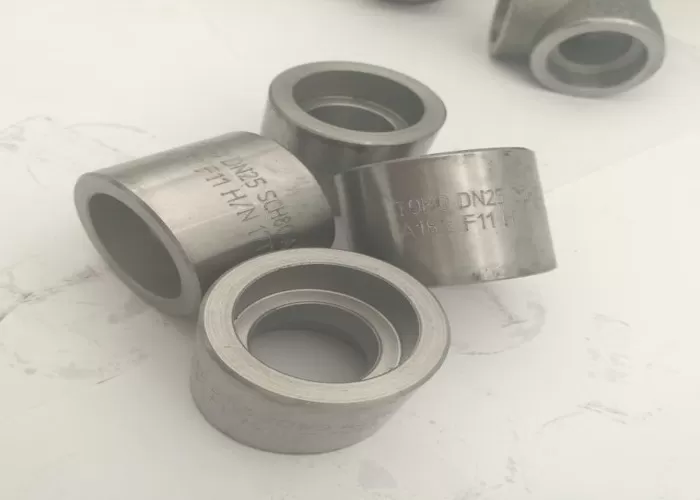

  • Alloy Steel : ASTM A 182-F5, F9, F11, F21, F22 & F91
  • Low Temp.CS : A 350 LF2
  • Other Services : Hot Dip Galvanizing, Sand Blasting, Special Threading.

STAINLESS STEEL & DUPLEX STEEL FORGED FITTINGS :

  • Size : 1/2″ NB to 4″ NB, (Socket Weld & Threaded)
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11
  • Stainless Steel : ASTM A 182 F -304/304H/304L/316/316H/316L/316Ti/309/310/317L/321/347/904L
  • Stainless Steel : DIN Standard EN 10222-5 1.4301/1.4307/1.4401/1.4404/1.4529/1.4571/1.4541/1.4410/1.4550/1.4335/1.4539
  • Duplex Steel : ASTM A 182 F -51, F 53, F 55

NICKEL ALLOYS FORGED FITTINGS :

  • Size : 1/2″ NB to 4″ NB(Socket Weld & Threaded)
  • Class :3000#, 6000#, 9000#, in ANSI/ASME B 16.11
  • Copper Nickel : C70600(90:10), C71500(70:30), C71640
  • Nickel : UNS N02200, N02201
  • Monel : UNS N04400, N05500, Alloy 20
  • Inconel : UNS N06600, N06601, N06625, N08800, N08810, N08825,
  • Hastelloy : UNS N10276, N06022, N10665, N06455,
  • SMO 254 Grade UNS S31254
  • Aluminium : ASTM B247, B361 – 2024, 6061, 6063, 6101, 7075.
  • Titanium : ASTM B381 – Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23

Test Certificate:

  •  Manufacturer test Certificate En 10204, 3.1 & 3.2
  •  IBR Test Certificate Form IIIC
  • TPI Inspection Release Note (as per customer requirement)
